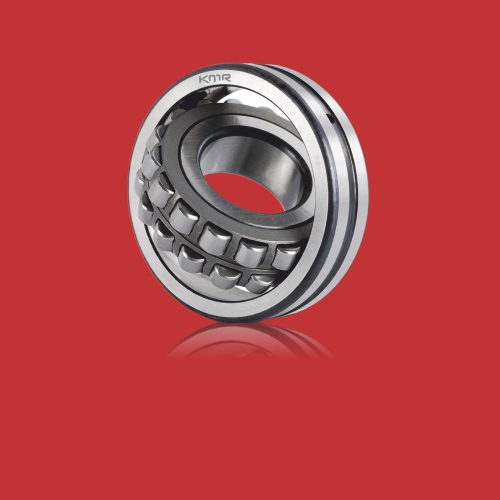

Kumar Industries - Series 22200

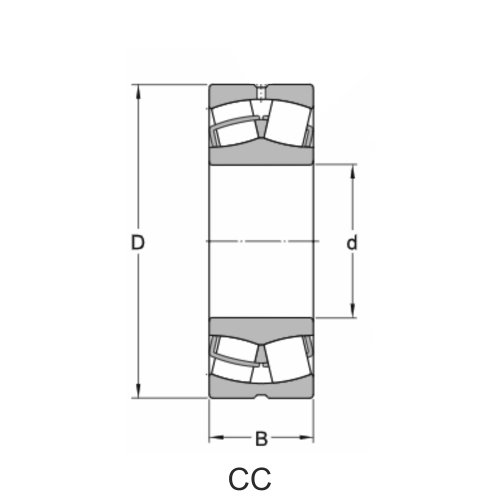

DIMENSION(mm)				LOAD RATING(kn)		RPM(/MIN) MAX		WEIGHT(KG)
Series	d	D	B	STATIC(Cr)	DYNAMIC(Cor)	GREASE	OIL	WEIGHT
22209	45	85	23	70	85	4000	5000	0.56
22210	50	90	23	70	95	3700	4600	0.61
22211	55	100	25	90	120	3300	4100	0.82
22212	60	110	28	115	155	3000	4000	1.14
22213	65	120	31	140	185	2600	3300	1.51
22214	70	125	31	150	195	2500	3100	1.57
22215	75	130	31	155	210	2300	3000	1.66
22216	80	140	33	165	230	2100	2800	2.00
22217	85	150	36	200	270	2000	2600	2.56
22218	90	160	40	230	320	1800	2400	3.35
22219	95	170	43	270	375	1800	2200	4.00
22220	100	180	46	300	420	1600	2200	4.79
22222	110	200	53	400	585	1300	1700	7.13
22224	120	215	58	465	680	1200	1600	8.65
22226	130	230	64	550	810	1000	1400	10.45
22228	140	250	68	625	935	900	1400	13.90
Series	d	D	B	STATIC(Cr)	DYNAMIC(Cor)	GREASE	OIL	WEIGHT
