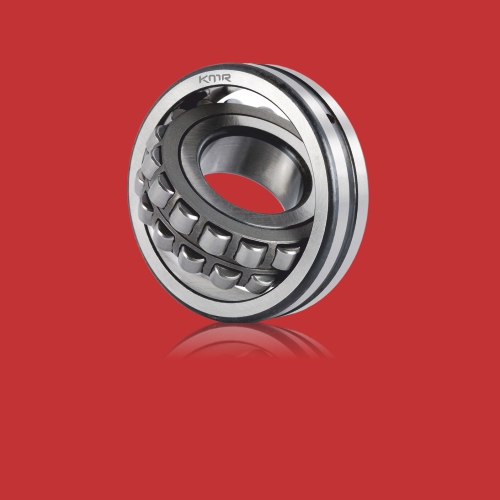

22300
22300
| DIMENSION(mm) | LOAD RATING(kn) | RPM(/MIN) MAX | WEIGHT(KG) | |||||
|---|---|---|---|---|---|---|---|---|

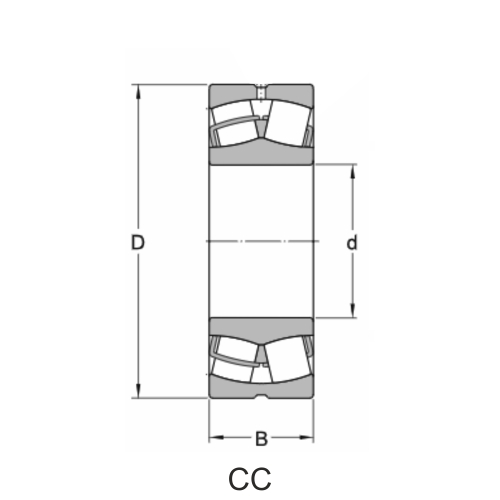

| Series | d | D | B | STATIC(Cr) | DYNAMIC(Cor) | GREASE | OIL | WEIGHT |
| 22309 | 45 | 100 | 36 | 125 | 155 | 3400 | 4300 | 1.34 |
| 22310 | 50 | 110 | 40 | 160 | 195 | 3000 | 4100 | 1.82 |
| 22311 | 55 | 120 | 43 | 195 | 240 | 3000 | 3600 | 2.31 |
| 22312 | 60 | 130 | 46 | 225 | 275 | 2600 | 3300 | 2.86 |
| 22313 | 65 | 140 | 48 | 250 | 300 | 2300 | 3100 | 3.44 |
| 22314 | 70 | 150 | 51 | 280 | 350 | 1800 | 2500 | 4.26 |
| 22315 | 75 | 160 | 55 | 330 | 430 | 1800 | 2500 | 5.25 |
| 22316 | 80 | 170 | 58 | 375 | 480 | 1700 | 2400 | 6.00 |
| 22317 | 85 | 180 | 60 | 410 | 540 | 1700 | 2300 | 7.10 |
| 22318 | 90 | 190 | 64 | 470 | 625 | 1600 | 2000 | 8.52 |
| 22319 | 95 | 200 | 67 | 520 | 680 | 1300 | 1800 | 10.00 |
| 22320 | 100 | 215 | 73 | 600 | 825 | 1300 | 1700 | 12.72 |
| 22322 | 110 | 240 | 80 | 690 | 935 | 1200 | 1400 | 17.90 |
| 22324 | 120 | 260 | 86 | 825 | 1130 | 1100 | 1400 | 21.85 |
| Series | d | D | B | STATIC(Cr) | DYNAMIC(Cor) | GREASE | OIL | WEIGHT |
